Power: 275W
Max. Head: 12M
Max. Flow: 3.1m³/h
Inlet x Outlet: 1" x 1"
Body length: 200mm
Applications :
Low noise automatic booster pump, suitable for cold and hot water pressurization in small and medium-sized apartment, such as: water supply low pressure in roof tank, low pressure of solar water outlet, gas water heater won’t turn on, low tap water pressure etc.
Operating Conditions :
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~95℃
Ambient temperature must be lower than liquid temperature, in order to avoid condensate water produced in the interior of stator
Liquid: Clean, non-corrosive and non-explosive liquids, without any particle, fiber or mineral oil.
Water/Glycol mixtures max. mixing ratio should be 1:1
Motor and Pump :
Copper winding
Built-in thermal protector
Ceramic shaft
Ceramic bearing
PP impeller
Male tab connection to the cable
Options on request :
Different cable length and plug
Brass flow meter can be optional
Different voltage and frequency

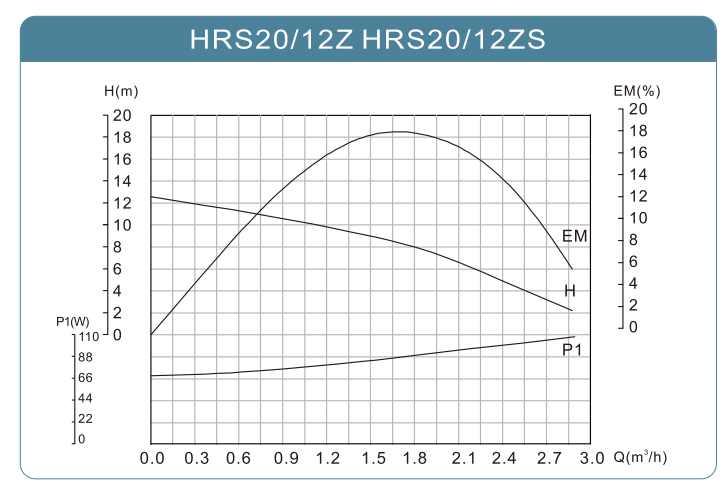

Performance Curves :
Technical Data :
| Model | Power | Max.Flow | Max.Head | Voltage | Material of pump body | Dimension(mm) | Weight | |||||||
| (W) | (m³/h) | (m) | 220V/ 50Hz | 220V/ 60Hz | 127V/ 60Hz | Cast Iron | Brass | Stainless steel | L | B | H | G | (Kg) | |
| HRS20/12Z | 275 | 3.1 | 12 | ★ | ★ | ★ | ★ | ★ | ★ | 200 | 130 | 156 | 1" | 4.5 |
| HRS20/12ZS | 4.3 | |||||||||||||
Installation Dimension :
